SP Welded Grating Meshes

MIDGRID Open Mesh Steel Flooring 'SP-Welded' Gratings can be supplied in Plain Top or Serrated Top Surfaces and We can provide a range of over 400 Different Combinations of Meshes and Bearing Bars.    Gratings can be fabricated to suit your required dimensions and we can also incorporate Cut-Outs and Kick Plates, as well as Deep Binding Bars. See our Terminology Page for further information.
Gratings can be supplied in Self Colour or Hot Dip Galvanised Finish. Gratings are manufactured in accordance with DIN 24537 and Galvanised in accordance with DIN 50976

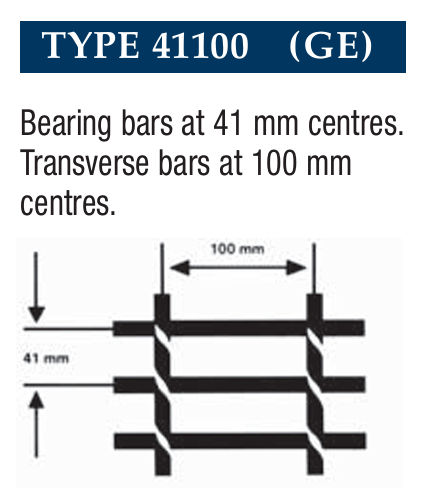

sp_41100_grating_mesh

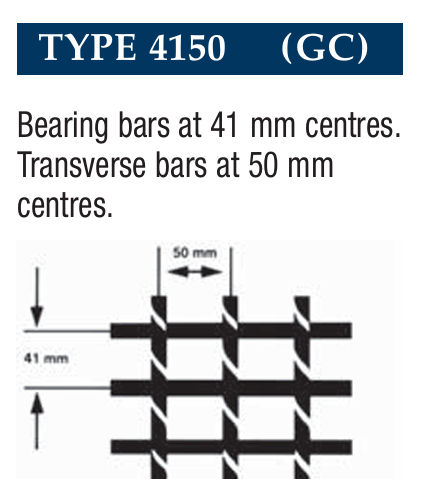

sp_4150_grating_mesh

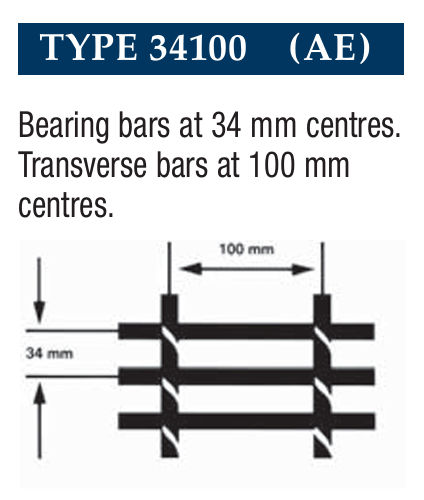

sp_340100_grating_mesh

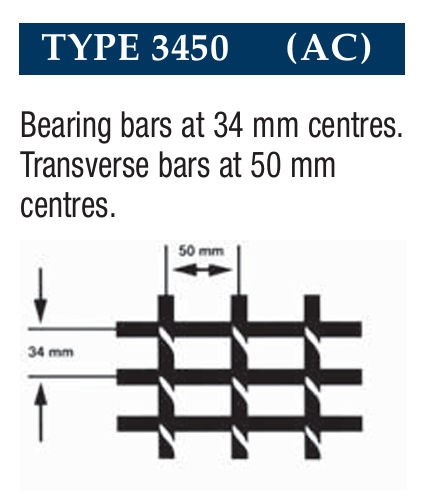

sp_3450_grating_mesh

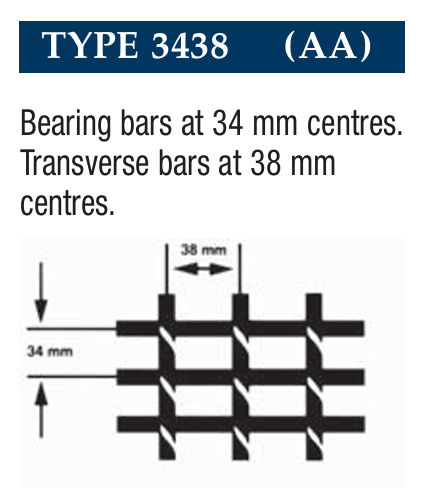

sp_3438_grating_mesh

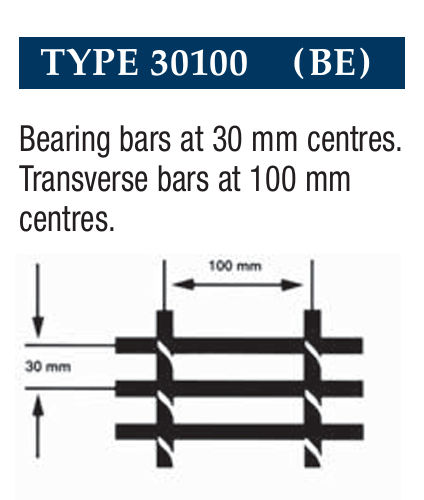

sp_30100_grating_mesh

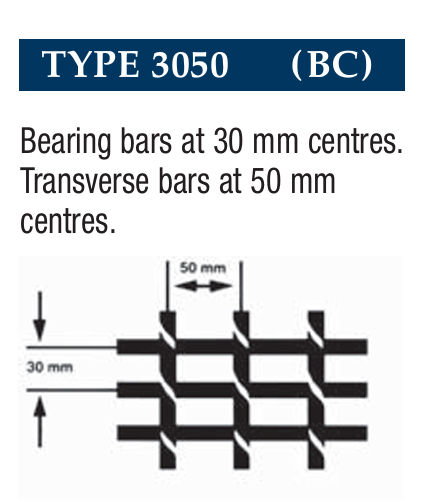

sp_3050_grating_mesh

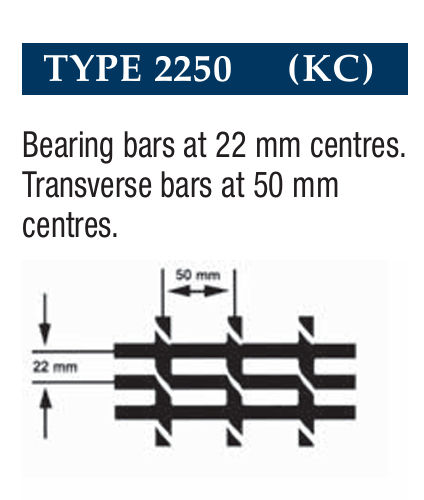

sp_2250_grating_mesh

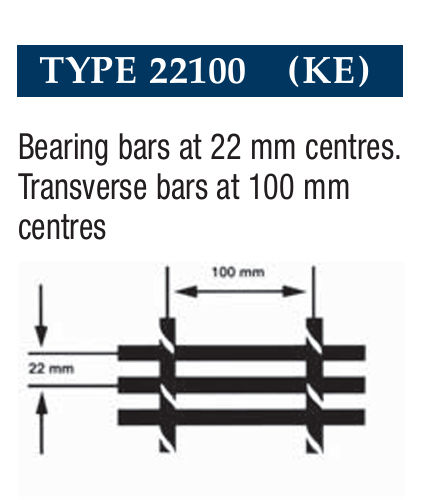

sp_22100_grating_mesh

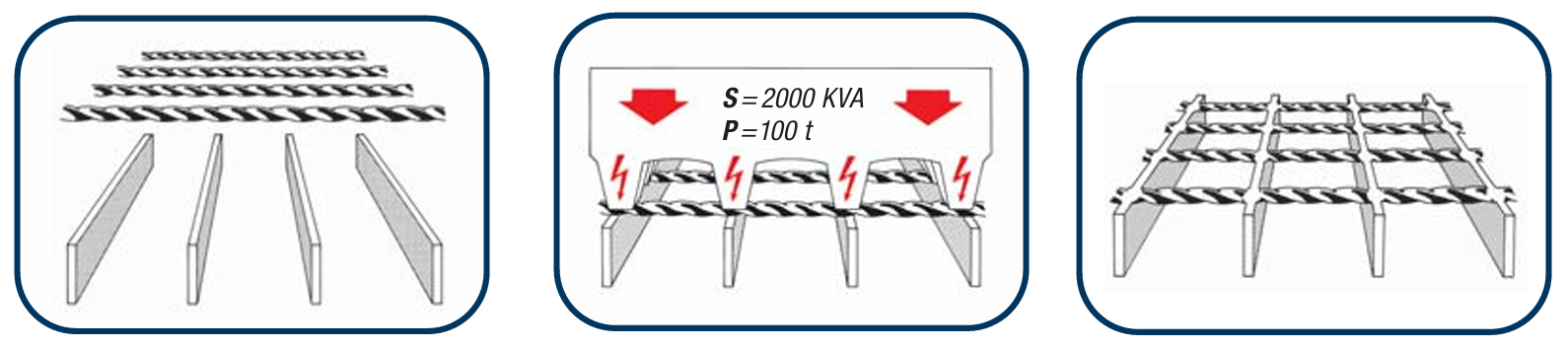

sp_welded_grating_construction_imageMIDGRID SP Welded Grating have a Twisted Transverse bar forged welded to the Bearing Bars under high pressure at every intersection, resulting in a one-piece construction.

25x2, 25x3, 25x5, 30x2, 30x3, 30x5, 35x3, 35x5, 40x3, 40x5, 50x3, 50x5

Mild Steel S235JR as Standard, Mild Steel S355JR* (*Subject to minimum order quantity)

Self Colour or Hot Dip Galvanised
