Open Mesh Steel Stair Treads

Our Open Mesh Steel Stair Treads can fall into Three Categories  :

Standard 'Stock' Stair Treads

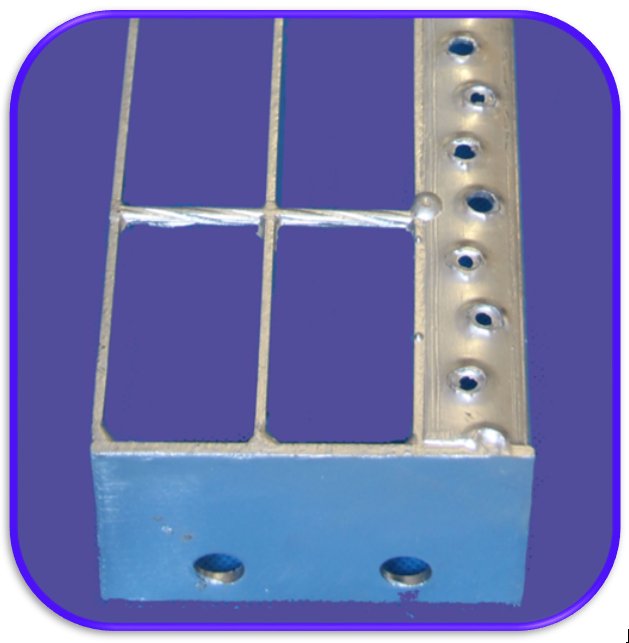

SP Welded Standard Stock Stair Treads are mainly stocked in Type SP 3438 (30 x 3) and in the sizes shown below.  These are fabricated with Non-Slip Perforated Safety Nosing to the Front edges and with Welded Endplates. All Standard Stock Treads are stocked in Hot Dip Galvanised Finish.

Standard Stair Treads
These are our range of  Standard Sizes and Standard Pattern Treads.  They will normally be most cost effective and will usually be on quicker deliveries.  Some of our range are shown below.

Custom Made Stair Treads
These can be made in any Length or Width to suit your Individual requirements.  We can also make these in a combination of Thirty Five different Mesh Patterns and with over 20 combinations of Bearing Bar depth and thickness. We can supply both SP Welded and PR Pressed Stair Treads in Mild Steel Self Colour or Galvanised Finish and also in Stainless Steel grades 304 or 316.

All Stair Treads are in accordance with DIN 24531 and Galvanised after fabrication in accordance with DIN 50976 where applicable.
All our Products are European Quality Products.

*All Prices are Ex. VAT, Ex. Works RIPON.

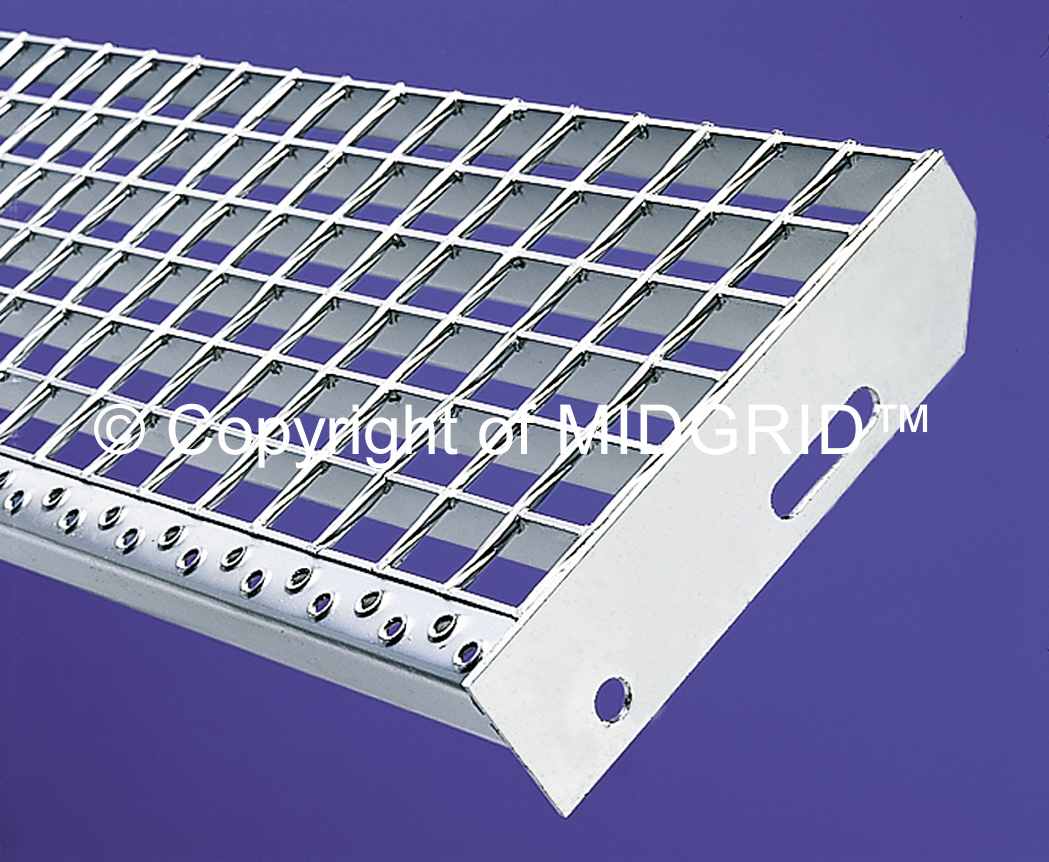

Standard Stock Stair Treads SP Welded Type
SP Standard Stock Tread

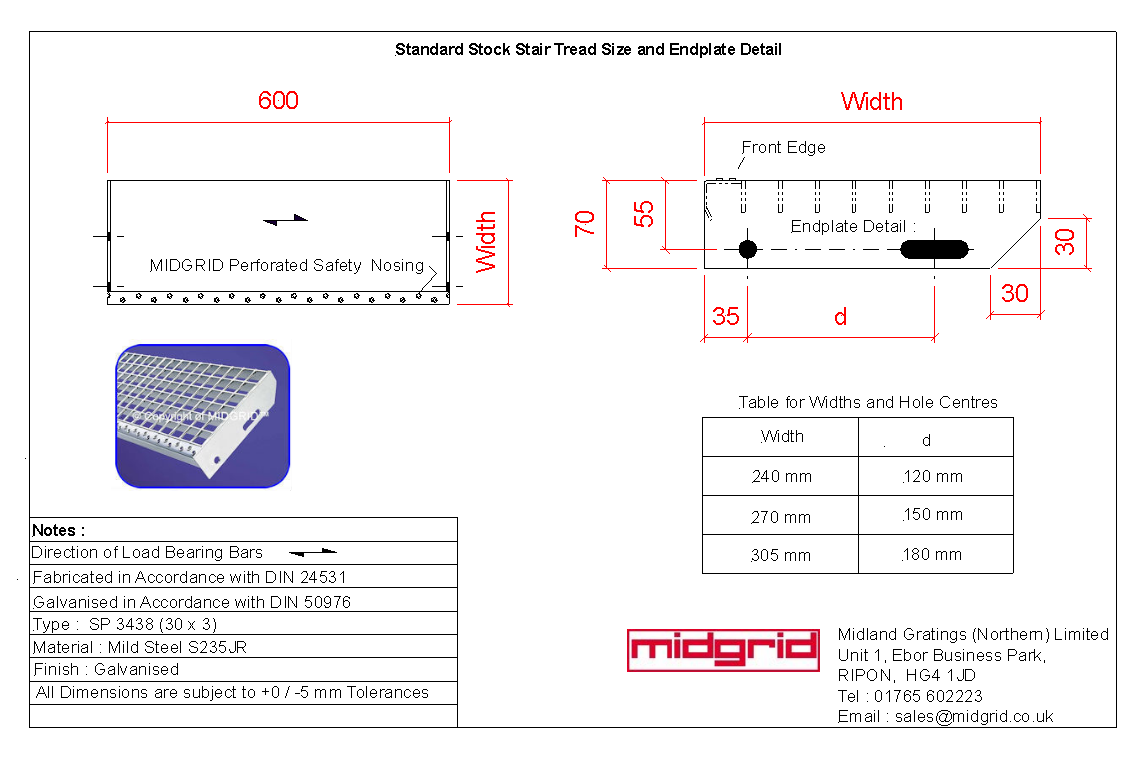

600 mm x 270 mm
SP Standard Stock Tread
700 mm x 270 mm
SP Standard Stock Tread

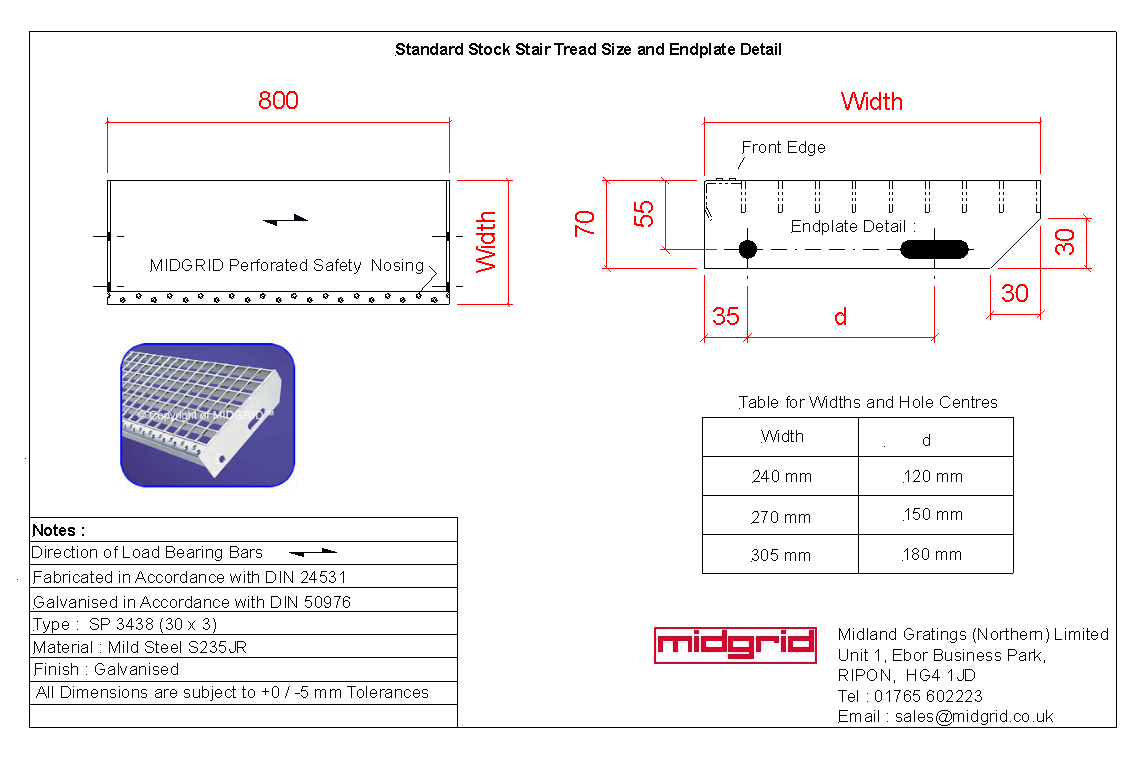

800 mm x 270 mm
SP Standard Stock Tread
1000 mm x 270 mm
Product Code :
SPSTMS-600-270
  • Size : 600 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 4.92 Kgs
  • Price : £ 29.00 Each *
Product Code :
SPSTMS-700-270
  • Size : 700 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 5.59 Kgs
  • Price : £ 33.00 Each *
Product Code :
SPSTMS-800-270
  • Size : 800 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 7.10 Kgs
  • Price : £ 32.00 Each *
Product Code :
SPSTMS-1000-270
  • Size : 1000 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 8.01 Kgs
  • Price : £ 36.00 Each *

Standard Stair Treads 'SP' Welded Type
SP Standard Tread
600 mm x 240 mm
SP Standard Tread
700 mm x 240 mm
SP Standard Tread
800 mm x 240 mm
SP Standard Tread
1000 mm x 240 mm
Product Code :
SPSTMS-600-240
  • Size : 600 mm x 240 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 4.92 Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-700-240
  • Size : 700 mm x 240 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 5.59 Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-800-240
  • Size : 800 mm x 240 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 7.10 Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-1000-240
  • Size : 1000 mm x 240 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 8.01 Kgs
  • Price : £ xx.00 Each *

SP Standard Tread
600 mm x 305 mm
SP Standard Tread
700 mm x 305 mm
SP Standard Tread
800 mm x 305 mm
SP Standard Tread
1000 mm x 305 mm
Product Code :
SPSTMS-600-305
  • Size : 600 mm x 305 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : x.xx Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-700-305
  • Size : 700 mm x 305 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : x.xx Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-800-305
  • Size : 800 mm x 305 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : x.xx Kgs
  • Price : £ xx.00 Each *
Product Code :
SPSTMS-1000-305
  • Size : 1000 mm x 305 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : x.xx Kgs
  • Price : £ xx.00 Each *

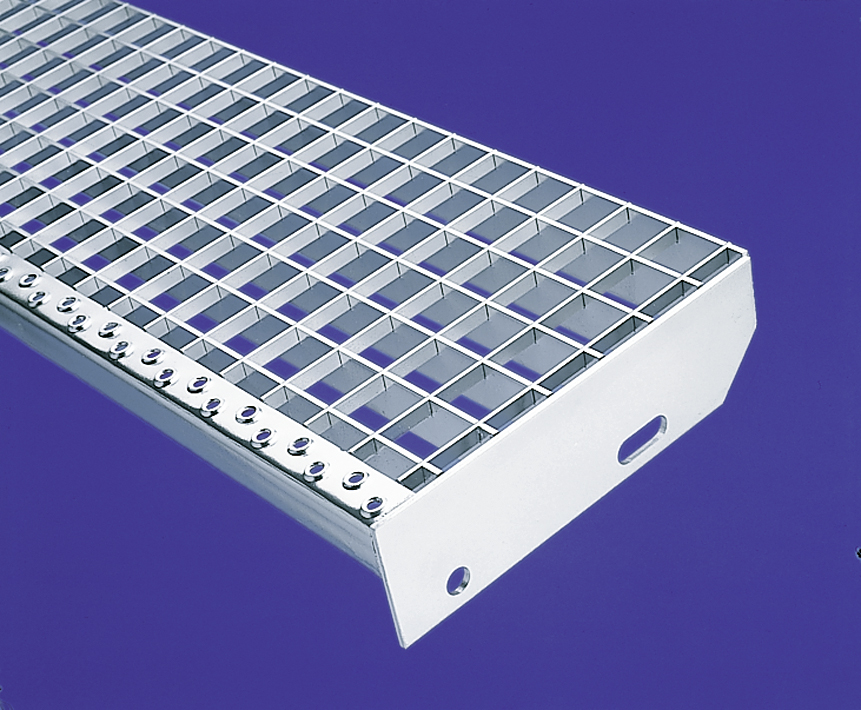

Standard Stair Treads 'PR' Pressed Type
PR Standard Tread
600 mm x 270 mm
PR Standard Tread
700 mm x 270 mm
PR Standard Tread
800 mm x 270 mm
PR Standard Tread
1000 mm x 270 mm
Product Code : PRMS-600
  • Size : 600 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 4.92 Kgs
  • Price : £ xx.00 Each *
Product Code : PRMS-700
  • Size : 700 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 5.59 Kgs
  • Price : £ xx.00 Each *
Product Code : PRMS-800
  • Size : 800 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 7.10 Kgs
  • Price : £ xx 00 Each *
Product Code : PRMS-1000
  • Size : 1000 mm x 270 mm
  • Material : Mild Steel S235JR
  • Finish : Galvanised
  • Weight Each : 8.01 Kgs
  • Price : £ xx.00 Each *
