SR Perforated Pressed Planking

MIDGRID 'SR' Profile Perforated Pressed Planks (also known as Q-Grating) are Available in Mild Steel (Self Colour or Galvanised), Stainless Steel Grades 304 or 316 and Aluminium. A Simple range has been designed to make your choice easier, whilst we hope offering different benefits and advantages. From the 'Serrated' Top for use in Industrial situations to our 'Round' and 'Offshore' Types which are much more suited to Architectural, Commercial Buildings and even Domestic situations.

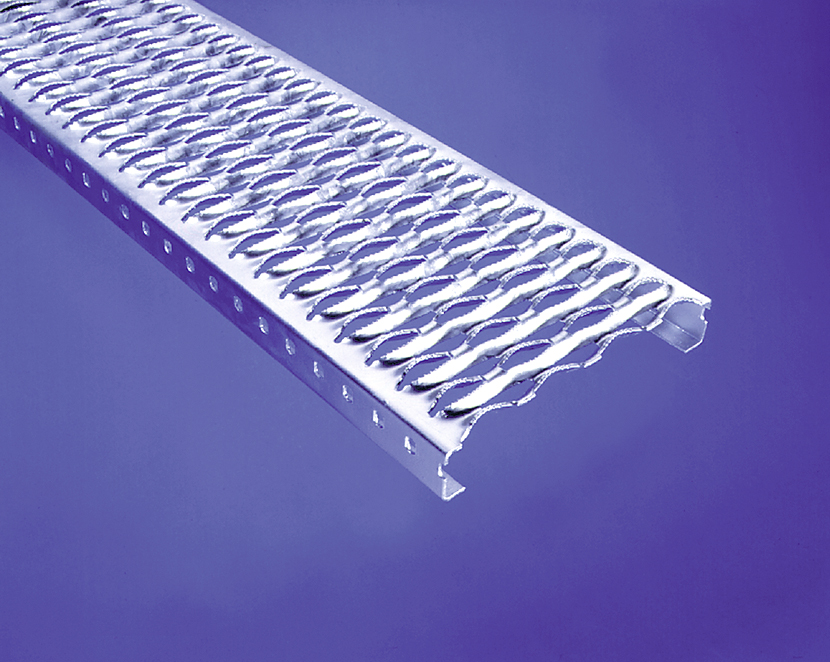

serrated_planking

Serrated Top Profile Planking is ideal in environments where Ice, Oil or Muddy areas are present. The design of the Serration offers excellent grip in the most testing of areas. The Planks come with open ends as Standard. Our Standard Stock Planks do not have holes in the Side Legs, these are only incorporated when requested.

Click for Full Range

200, 250, 300 and 400 mm

40 mm, 50 mm and 75 mm

Mild Steel S235JR (ST 37.2)
Alumnium AlMg3
Stainless Steel 304
Stainless Steel 316

Self Colour, Hot Dip Galvanised for Mild Steel
Natural for Aluminium and Stainless Steel

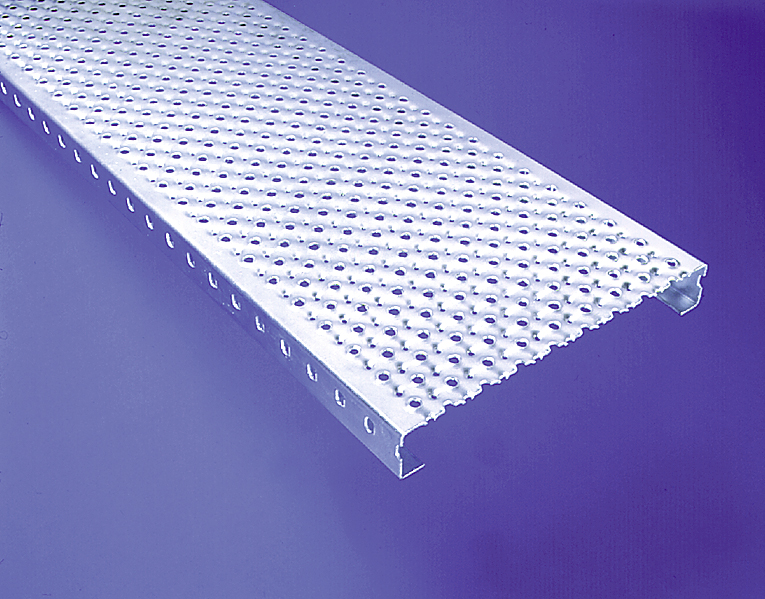

round_planking

Round Type Profile Planking is ideal in environments where Ice, Oil or Muddy areas are present. The design of the Serration offers excellent grip in the most testing of areas. The Planks come with open ends as Standard. Our Standard Stock Planks do not have holes in the Side Legs, these are only incorporated when requested.

Click for Full Range

150 mm, 200 mm, 250 mm and 300 mm

40 mm, 50 mm and 75 mm

Mild Steel S235JR (ST 37.2)
Alumnium AlMg3
Stainless Steel 304
Stainless Steel 316

Self Colour, Hot Dip Galvanised for Mild Steel
Natural for Aluminium and Stainless Steel

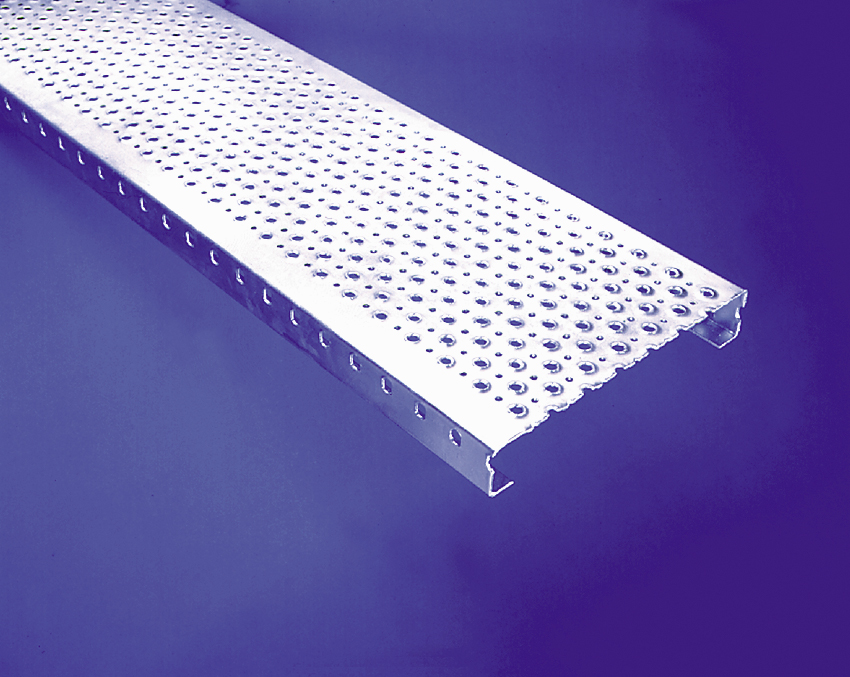

offshore_planking

Offshore Type Profile Planking is ideal in environments where Ice, Oil or Muddy areas are present. The design of the Serration offers excellent grip in the most testing of areas. The Planks come with open ends as Standard. Our Standard Stock Planks do not have holes in the Side Legs, these are only incorporated when requested.

Click for Full Range

150 mm, 200 mm, 250 mm and 300 mm

40 mm, 50 mm and 75 mm

Mild Steel S235JR (ST 37.2)
Alumnium AlMg3
Stainless Steel 304
Stainless Steel 316

Self Colour, Hot Dip Galvanised for Mild Steel
Natural for Aluminium and Stainless Steel

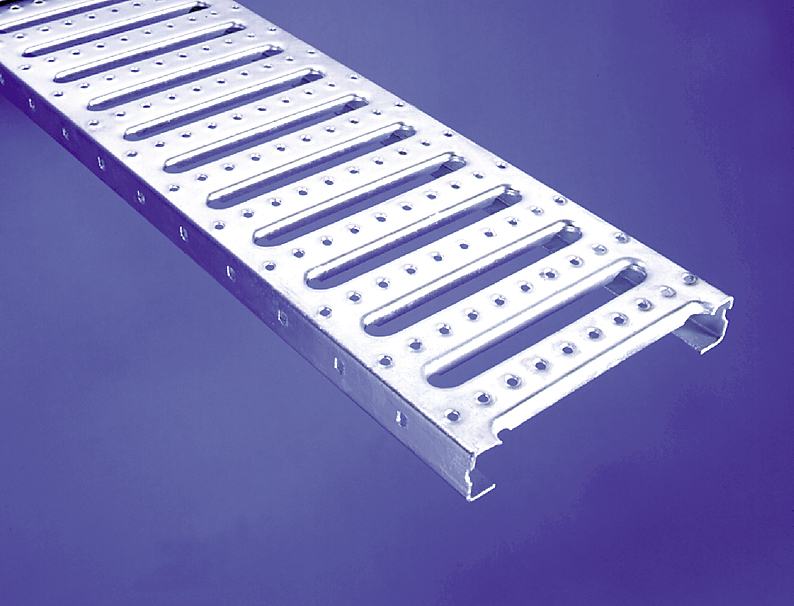

slotted_planking

Slotted Type Profile Planking is ideal in environments where Ice, Oil or Muddy areas are present. The design of the Serration offers excellent grip in the most testing of areas. The Planks come with open ends as Standard. Our Standard Stock Planks do not have holes in the Side Legs, these are only incorporated when requested.

Click for Full Range

150 mm, 200 mm, 250 mm and 300 mm

40 mm, 50 mm and 75 mm

Mild Steel S235JR (ST 37.2)
Alumnium AlMg3
Stainless Steel 304
Stainless Steel 316

Self Colour, Hot Dip Galvanised for Mild Steel
Natural for Aluminium and Stainless Steel

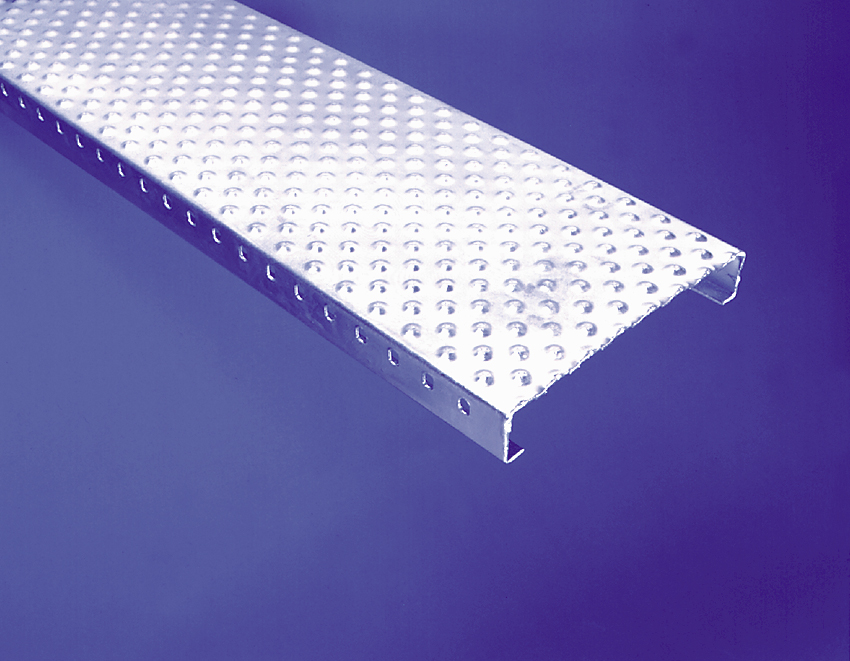

closed_planking

Closed Type Profile Planking is ideal in environments where Ice, Oil or Muddy areas are present. The design of the Serration offers excellent grip in the most testing of areas. The Planks come with open ends as Standard. Our Standard Stock Planks do not have holes in the Side Legs, these are only incorporated when requested.

Click for Full Range

150 mm, 200 mm, 250 mm and 300 mm

40 mm, 50 mm and 75 mm

Mild Steel S235JR (ST 37.2)
Alumnium AlMg3
Stainless Steel 304
Stainless Steel 316

Self Colour, Hot Dip Galvanised for Mild Steel
Natural for Aluminium and Stainless Steel
