PR Pressed Grating Meshes

MIDGRID Open Mesh Steel Flooring 'PR-Pressed' Gratings can be supplied in Plain Top or Serrated Top Surfaces and We can provide a range of over 400 Different Combinations of Meshes and Bearing Bars.    Gratings can be fabricated to suit your required dimensions and we can also incorporate Cut-Outs and Kick Plates, as well as Deep Binding Bars.
See our Terminology Page for further information.

Gratings can be supplied in Self Colour or Hot Dip Galvanised Finish. Gratings are manufactured in accordance with DIN 24537 and Galvanised in accordance with DIN 50976

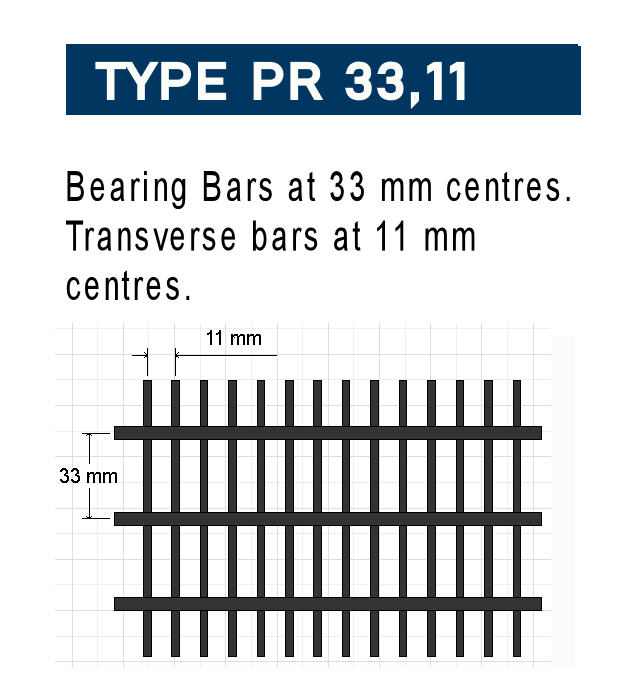

pr_3311_grating

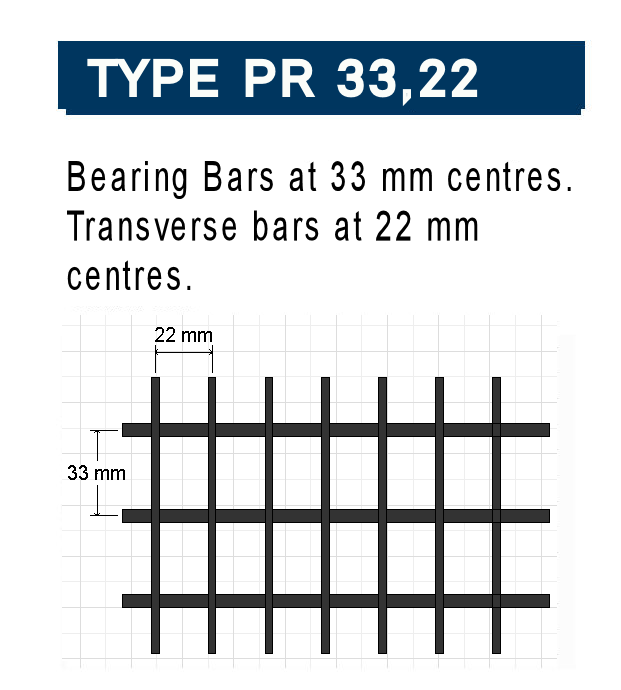

pr_3322_grating

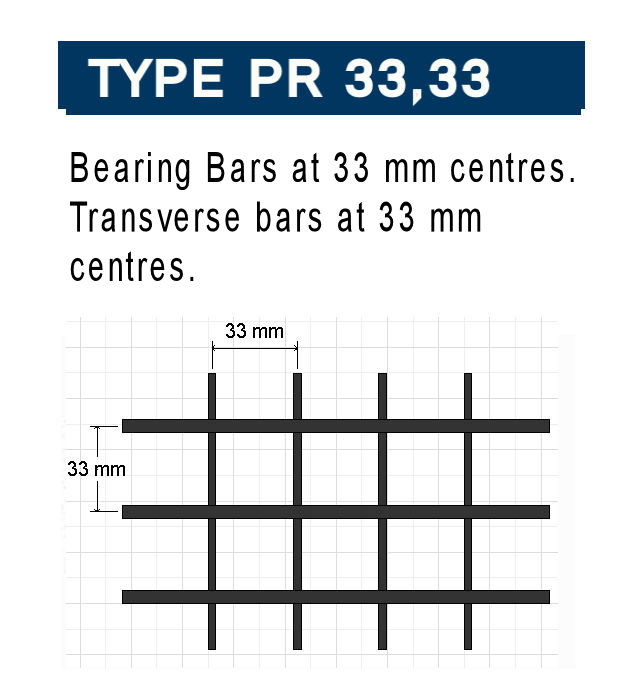

pr_3333_grating

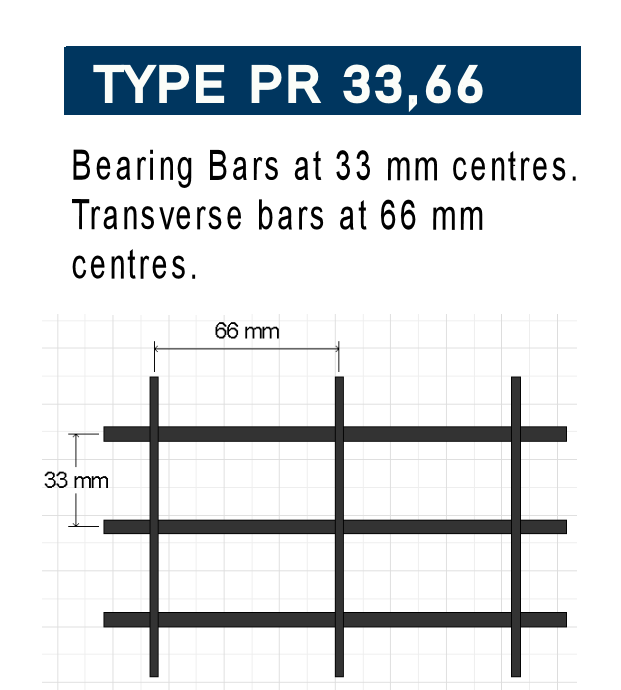

pr_3366_grating

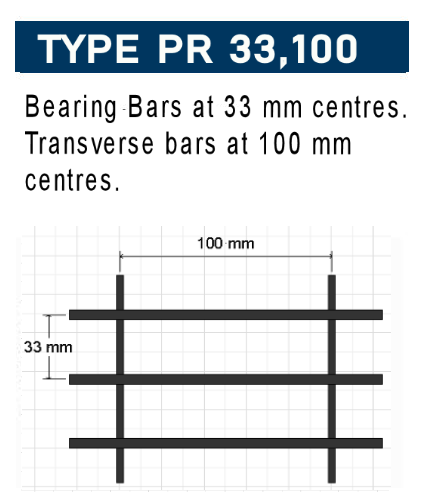

pr_33100_grating

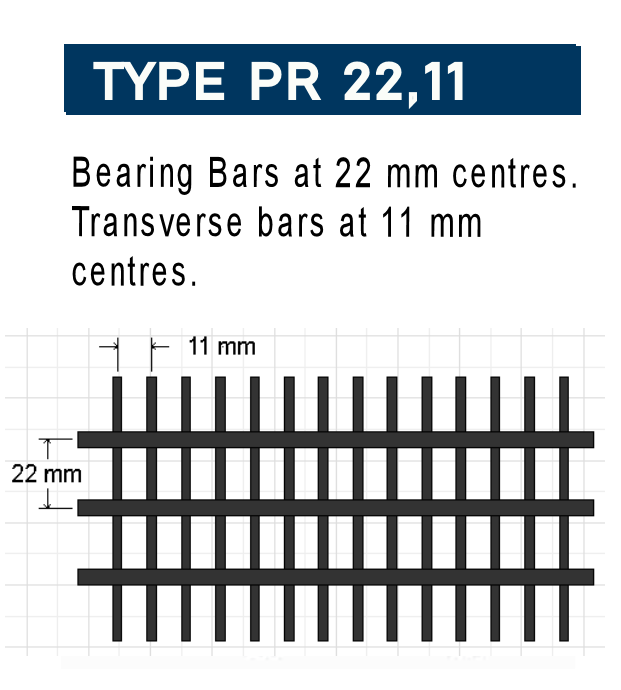

pr_2211_grating

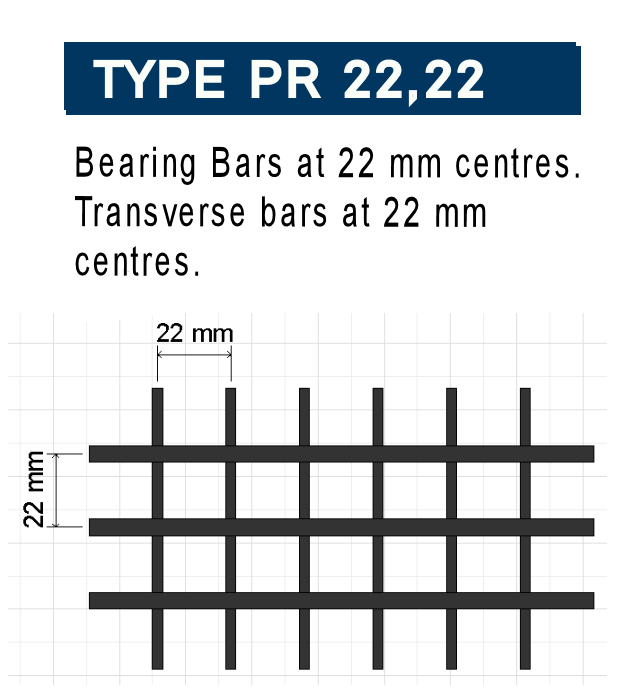

pr_2222_grating

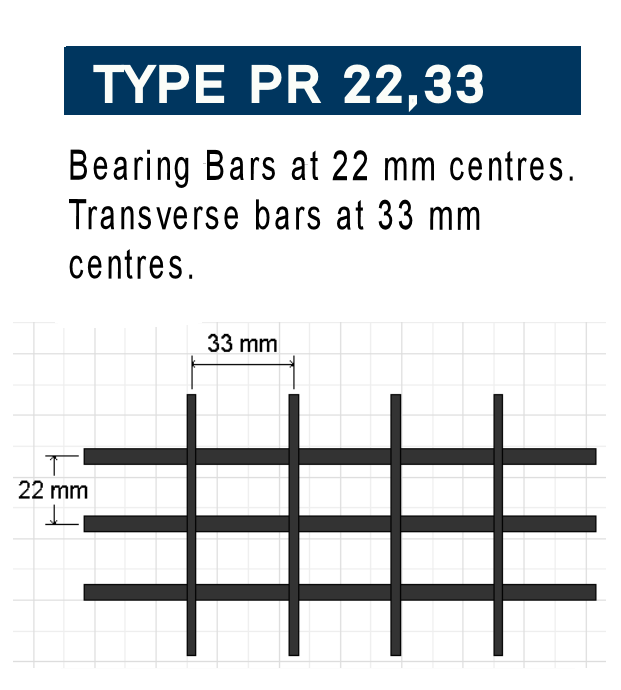

pr_2233_grating

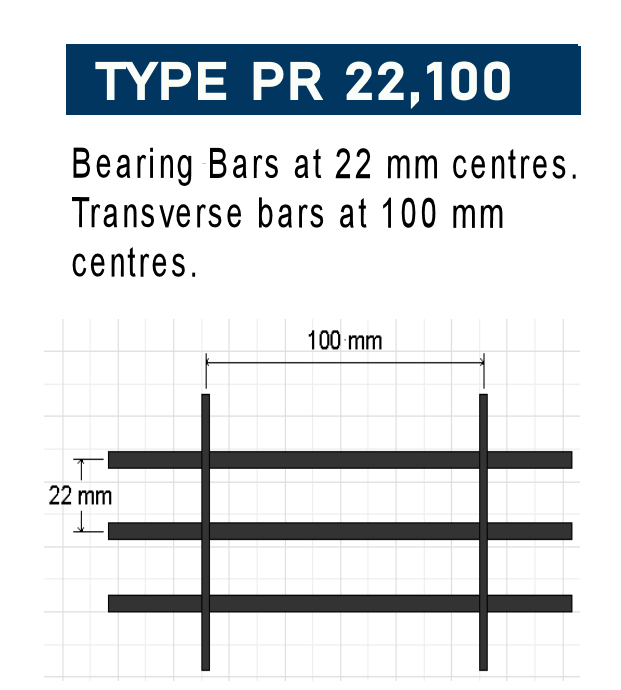

pr_22100_grating

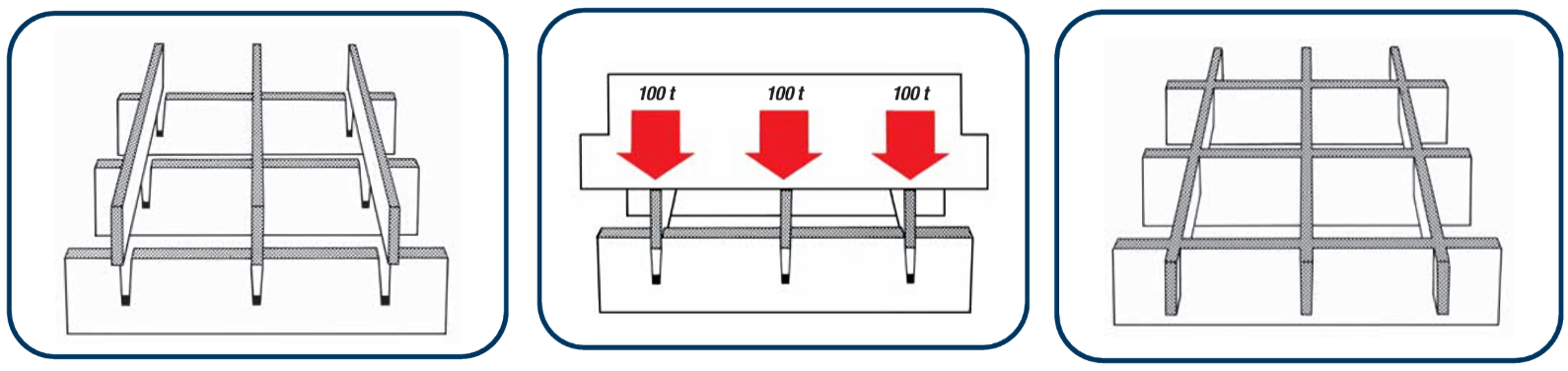

pr_mesh_constructionMIDGRID PR Pressed Gratings have a 10 x 2 mm Flat Transverse bar pressure locked into the Bearing Bars under high pressure at every intersection     .

25x2, 25x3, 25x5, 30x2, 30x3, 30x5, 35x3, 35x5, 40x3, 40x5, 50x3, 50x5

Mild Steel S235JR as Standard, Mild Steel S355JR* (*Subject to minimum order quantity)

Self Colour or Hot Dip Galvanised
